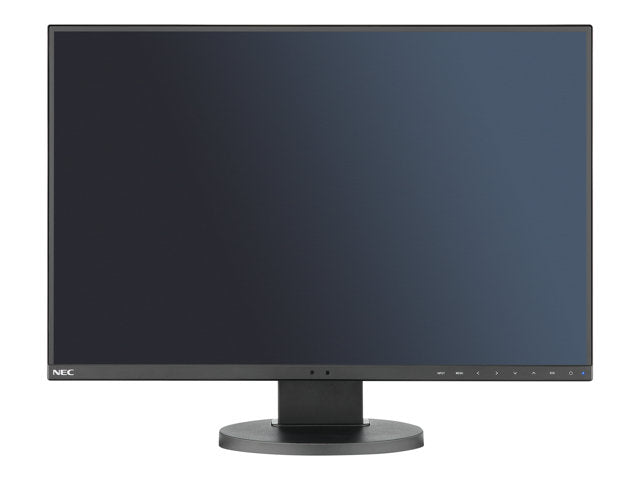

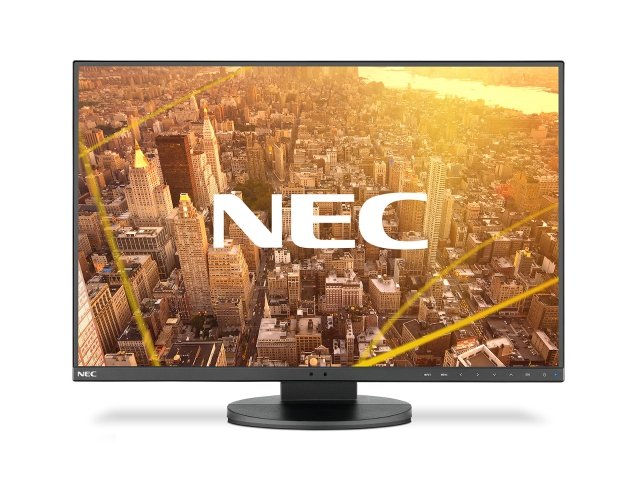

+ NEC MultiSync EA245WMi black | Monitor | LCD 24" Display Büro & Industrie | 60003811 | NEU

Specifications

Product Information
Product Name MultiSync® EA245WMi
Product Group NEC LCD 24" Commercial Display
Order Code 60003811 (BK),

Display
Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24.1 / 61.13
Screen Aspect Ratio 16:10
Pixel Pitch [mm] 0.270
Brightness (typ.) [cd/m²] 350
Contrast Ratio (typ.) 1000:1 (25000:1 dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 6
Colours [Mio.] 16.77

Synchronisation Rate
Horizontal Frequency [kHz] 31.5 - 77
Vertical Frequency [Hz] 56 - 60

Resolution
Optimum Resolution 1920 x 1200 at 60 Hz
Supported 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 900; 1400 x 1050; 1366 x 768; 1360 x 768;
1280 x 1024; 1280 x 960; 1280 x 768; 1280 x 720; 1024 x 768; 800 x 600; 640 x 480

Connectivity
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x DVI-D (with HDCP); 1 x HDMI; USB ver 3 (1 up / 2 down) ver 2 (1
down)
Analog 1 x mini D-sub 15 pin

Electrical
Power Consumption on Mode [W] 16 (Eco Mode); 21 (typ.); 29 (max.)
Power Savings Mode [W] 0.47
Power Supply internal power supply

Environmental Conditions
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80

Ergonomics
Height adjustable Stand [mm] 130
Screen Tilt / Swivel [°] -5 to +30; -170 to +170
Screen Rotate [°] 0 to 90 (landscape to portrait mode)

Mechanical
Dimensions (W x H x D) [mm] 556.2 x 408.9 x 230
Weight [kg] 7.5
VESA Mounting [mm] 100 x 100

NEC LCD 24 Commercial Display - MultiSync® EA245WMi (2 / 3)

Additional Features
Special Characteristics Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter;
ControlSync®; Customize Setting; DICOM preset; EcoModes; ErgoDesign®: Height adjustable stand (130
mm) with 90° Pivot features; Human Sensor; LED Backlight Technology; NaViSet Administrator 2; sRGB
Support; Touch Sensor Keys; USB ver. 2.0 (4 down / 1 up)
Colour Versions Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play VESA DDC2B; VESA DDCi
Audio Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV
Mode; EcoMode; Fine Adjust (analog); Human Sensing; Intelligent Power Management; Language Select;
LED Brightness; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-
out; One Touch Recovery; Power-Off Timer; sRGB
Shipping Content Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Setup Guide; USB Cable
Safety and Ergonomics CE; EnergyStar 6.0; EPEAT™ Gold; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I);
MPR III; PCT/Gost; RoHS; TCO 6.0; TCO Certified Edge Displays 1.2.; TÜV Ergonomics; TÜV GS; UL/C-UL
or CSA
Warranty 3 years warranty incl. backlight; optional 4th to 5th year warranty extension

Green Features
Energy Efficiency Ambient light sensor; Annual energy consumption: 31 kWh (based on 4 operating hours per day); Energy
efficiency class: A+; Human sensor; Intelligent Power Management
Ecological Materials Downloadable manuals
Ecological Standards Energy Star 6.0; TCO edge
